WG783Industrial intelligence gateway

Equipment
Network

Data
Collection

Protocol
Analysis

Edge
Computing

Cloud
Access

Open
Interface

WG783 Industrial Intelligent Gateway

A dual-core 4G/5G network with three network ports and two serial ports

Hw Param：dual-core CPU, 256MB RAM, 8GB EMMC, 3 Gigabit Ethernet ports, 2 serial ports

Networking：5G, 4G, 2.4GHZ/5.8GHZ WiFi (AP/STA), wired Ethernet

Gathering：PLC, instruments, environmental protection, hydrology, energy and other equipment data

Edge Computing：Protocol analysis, alarm triggering, jump triggering, formula calculation, edge decision-making

Cloud Adaptation：access to WTBL cloud platform, self-developed cloud and third-party industrial platform

System Application：Remote maintenance equipment, multi-network mutual backup, breakpoint continuation,network and application self-recovery, serial port forwarding, protocol forwarding, etc

Sample application Online consulting

Multiple networking functions and interfaces

Support three Gigabit Ethernet ports, two serial ports (232/485), one USB port, support 5G, 4G, dual-band WIFI, wired Ethernet and other networking access

Powerful data collection capability

Support the data collection of various PLC, instruments, machine tools, robot arms, environmental protection, power and other equipment, quickly collect patent algorithms, simultaneously collect multiple devices, embed mainstream industrial control protocols (Modbus TCP, Modbus RTU, OPC UA, DTL645, IEC, PPI, MPI, ISO on TCP, EtherNET...), and support personalized protocol customization and development

Rich edge computing functions

Support a variety of edge computing functions such as intelligent collection, data filtering, alarm calculation, jump trigger, formula calculation, grouping strategy, etc.
After the equipment model is established and the data is standardized, the equipment heterogeneity is eliminated and the standardization is realized, which greatly saves the R&D and construction costs of the project.

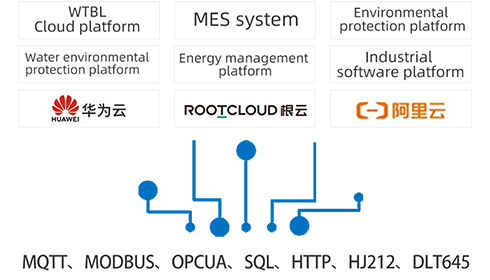

Flexible cloud-based adaptation

Supports access to remote software platforms through MQTT, MODBUS, OPCUA, SQL, and HTTP databases（Including: WTBL IOT cloud platform, cloud platform independently developed by customers, IOT cloud platforms such as RootCloud、Meiyun、Huawei、Alibaba、Baidu、Microsoft, configuration software, MES、ERP and other industrial software ）
Support simultaneous access to different types of cloud platforms and software, and support customized adaptation

Fully remote O&M manages onsite devices

The embedded remote operation and maintenance module, together with WTBL's Device Maintenance Fast Line and equipment maintenance cloud platform, can realize remote configuration, remote debugging, remote diagnosis, remote update program and other functions for on-site equipment, and cooperate with WTBL's gateway management cloud platform to achieve remote configuration, monitoring, diagnosis, update program and other functions for gateways distributed around the world.

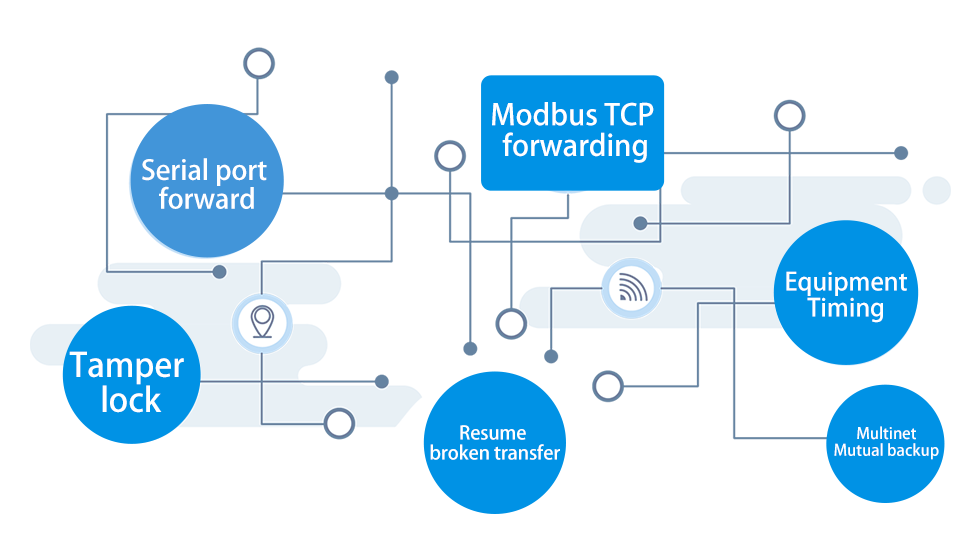

Rich industrial edge applications

Serial port forwarding, Modbus TCP forwarding, equipment timing, anti disassembly locking, breakpoint continuous transmission, and multi network mutual backup……

Open API development interface

Provide rich API interfaces to software developers, and realize data collection, two-way control and remote management of field devices through the open platform format MQTT+JSON of WTBL. Users can quickly build advanced and professional industrial application systems.

High security and reliability

Built-in firewall and various encryption mechanisms
Built-in software and hardware watchdogs, care procedures (network disconnection, resumable breakpoint, abnormal self-recovery), to ensure data security and system stability and reliability, to achieve unattended
Full industrial grade design, CE, EMC, high and low temperature, industrial safety connection certification, supporting 6~35V wide voltage power supply, - 20 ° C~70 ° C industrial wide temperature design, meeting the harsh industrial environment

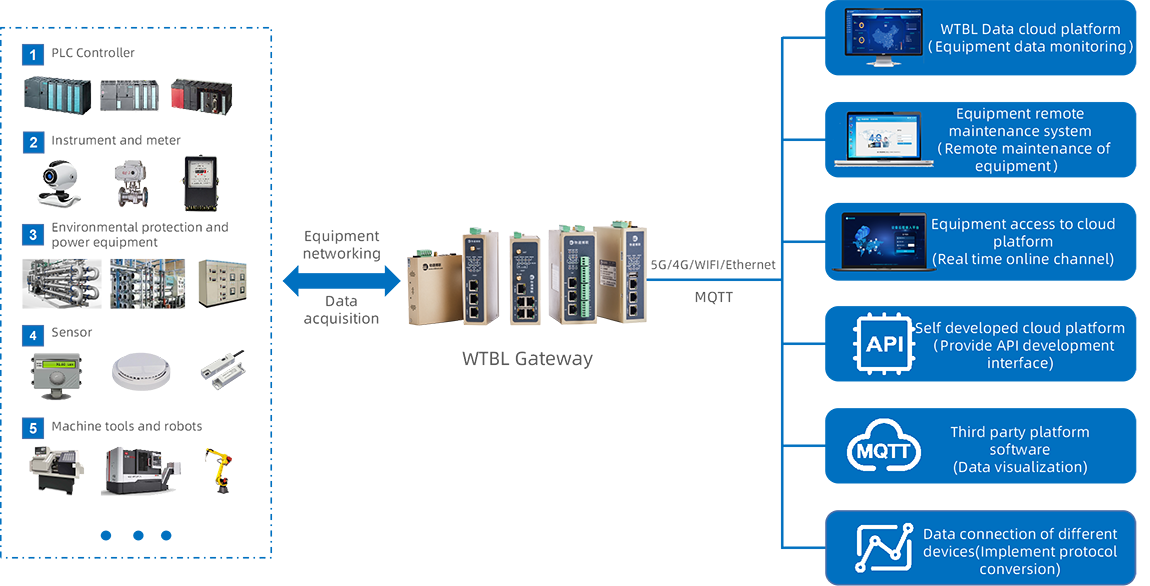

Application Scenarios

Access WTBL's cloud platform

Independent development platform

Access to the third platform

Remote maintenance equipment

Device protocol conversion

Specifications

Software Specifications
Network features		Network access	Support 5G, 4G, WIFI, Ethernet access
		Network authentication	Support CHAP/PAP authentication, support APN access
		Network standard	GSM/GPRS/EDG EUMTS/HSPA+/CDMA2000-EVDO/TD-SCDMA/TDD-LTE/FDD LTE/NR 5G For specific frequency band information, please refer to the ordering information table
		LAN protocol	Support ARP, DNS, DHCP
		WAN protocol	Support Static IP, DHCP, PPPOE, GRE
		IP application	Support Ping, Trace, Route, NAT, DMZ, etc.
		Internet application	Support disconnection and reconnection, support for multi-network mutual backup
WIFI function (optional)	Protocol standard		Supports IEEE 802.11b/g/n or IEEE 802.11ac/b/g/n
	Operating mode		Support FAT AP, FIT AP, STA, Relay and other working modes
	Band rate		Support 2.4G/5.8G dual-band, support 300Mbps~1300Mbps optional rate
	Safety features		Support open system, shared key, WPA/WPA2 authentication
	Safety features		Support WEP/TKIP/AES encryption
	Transmission distance		100m (the actual transmission distance depends on the site environment)
Safety	Protection security		Support stateful packet inspection (SPI), prevent denial of service (DoS) attacks, filter multicast/Ping detection packets, source port mapping, destination port mapping, DMZ, access control function (ACL), IP-MAC binding
	Data Security		Support L2TP VPN/PPTP VPN/IPSec VPN/ OPEN VPN/Device VPN (optional)
	Safety certificate		TLS security encryption, user name password and certificate authentication access
	Firewall		Built-in firewall function, all-round network blocking and protection
Reliability	Link detection		Support sending heartbeat detection packet detection, automatic connection when disconnected
	Watchdog Protection		Multiple software and hardware watchdogs to achieve self-healing of equipment failures
	Functional Safety Guard		Real-time care of various functional modules, pre-judging and processing possible errors and self-healing
Intelligent	Internet of Things		Support MQTT protocol, support JSON message and MQTT transparent transmission
	Intelligent collection		The patented fast acquisition and stable acquisition algorithm realizes stable, reliable and efficient data acquisition, and supports one gateway to collect multiple different types of devices
	Protocol analysis		Support the protocol analysis of mainstream PLC controllers, instruments, collectors and various controllers such as Siemens, Schneider, Omron, Mitsubishi, Delta, Modbus, DTL645, etc.
	Edge computing		It can realize functions such as data filtering, grouping, alarm reporting, jump triggering and formula calculation
	Standardize		Standardize the data of various protocols and build object models to achieve data and business standardization
	Cloud access		Supports simultaneous connection to multiple MQTT platforms of different types or the same type of data center : Wutong Bolian Cloud, Alibaba Cloud, Baidu Cloud, Huawei Cloud, Microsoft Cloud, etc. Environmental Protection HJ212-2017, Hydrology SL651-2014, Electric Power 104 Protocol, Industrial Control OPC UA
	Data penetration		Support MQTT data penetration function, realize data analysis and application in the cloud
	Remote maintenance		Cooperate with equipment maintenance express line to realize remote diagnosis, remote debugging and upgrade of on-site equipment
	Network access		Cooperate with the equipment access express line to realize the establishment of remote monitoring links between equipment and equipment, equipment and software
	Protocol forwarding		Realize the conversion of different protocols into a unified protocol such as Modbus TCP, etc.
	Serial forwarding		Realize serial port data forwarding to another serial port, realize multi-master-slave architecture data acquisition
	Device model		Support multi-device combined reporting, support one device split into multiple sub-devices for reporting
	Http		Supports resumable upload from breakpoints, and supports storage media including memory/TF/SSD/EMMC
	Data storage		Historical data can be stored in memory or TF card or hard disk SSD or EMMC
	Two-way control		Support data timing reporting, immediate read, immediate write, batch read, batch write and other controls
	Channel monitoring		Support online status and heartbeat reporting of devices and gateways to monitor link status
	Bus adaptation		Support adapting different algorithms according to different buses to ensure stable and reliable transmission
	Positioning information		Support base station positioning and GPS/BD positioning (optional)
	IO volume collection		Support internal digital and analog acquisition of gateway (optional)
Management and maintenance	Configuration project		Support both local and remote configuration of data points and gateway applications
	Application upgrade		Support local and remote program upgrades, rapid product feature release and iteration
	Remote diagnosis		Supports remote diagnosis and recovery of gateway failures
	Log function		Supports complete and detailed log functions to facilitate and quickly troubleshoot and diagnose problems
	Import and Export		Support the import and export of project files, which is convenient for diagnosis and batch configuration
	Diagnostic commands		Support rich diagnostic command interface, can realize local self-diagnosis
	Status query		System status, module status, network connection status, application status, etc.
Application development	Custom Development		Support Wutong Bolian to customize the development of edge applications on the gateway according to user needs
	Edge development		Support users' own engineers to develop edge computing applications on the gateway
	Cloud development		Provides rich API interfaces to facilitate development engineers to develop upper-level software

Hardware Specifications
Hardware platform	CPU core	880MHZ dual core
	run storage	256MB(2Gb)
	program storage	16MB （128Mb）
	data storage	8GB (8192Mb) EMMC storage
Interface features	Power interface	DC 9V-35V (terminal), commonly used 12V or 24V
	Ethernet port	3*10/100/1000Mbps high-speed Ethernet ports, 1.5KV network isolation and transformer protection 3 network ports with data exchange function, FE0 supports WAN/LAN settings
	Serial interface	2 RS-232/485 interfaces (terminals) are optional, 15KV ESD protection Each 485 interface can mount up to 31 slaves
	5G network standard (choose one of two)	5G Sub-6 GHZ, support 5G NSA and 5G SA modes 5G NSA downlink maximum 2.5Gbps, uplink maximum 650Mbps 5G SA downlink maximum 2.1Gbps, uplink maximum 900Mbps LTE downlink maximum 1.0Gbps uplink maximum 200Mbps WCDMA downlink maximum 42Mbps uplink maximum 5.76Mbps
	4G network standard (choose one of two)	LTE Cat4, maximum downlink rate 150Mbps, maximum uplink rate 50Mbps LTE-TDD/LTE-FDD/DC-HSDPA+/HSPA/HSDPA/HSUPA/WCDMA/CDMA, etc.
	SIM card holder	In-line card slot* 1 (medium card)
	reset button	Pinhole reset button
	Real Time Clock	RTC real-time clock (built-in battery)
	Antenna connector	5G network: SMA x 4, 4G network: SMA x 2, WLAN: RP-SMA x 2 (5 in total)
Mechanical properties	Dimensions	145 x 112 x 40 (mm)
	Installation method	rail type
	shell	Metal shell (local gold)
	Protection class	IP30
	Cooling method	Fanless cooling
	weight	608g (different configurations have different weights)
equipment power	Standby power	150mA-250mA@12V
	Working power	250mA-350mA@12V(4G)/250mA-1200mA@12V(5G)
	peak power	350mA@12V (4G)/625mA@12V(WIFI)/875mA@12V(WIFI+4G)/ 1200mA@12V(5G+WIFI)
environment humidity	environment humidity	5% ~ 95% (no frosting)
	storage temperature	-40℃~ 85℃
	Operating temperature	-20℃ ~ 70℃

Product Selection

Hardware selection
order number	WG783--- -
N (network type)	NF15: NR (5G foreign), NF65: NR (5G domestic), LQ05: LTE (4G), AP/STA: WiFi
F (Function)	WMQTT (Wotong Bolian Platform), MMQTT (Modbus version), MQTT (General MQTT), WCONN (Device Express)
S (serial port)	485: 485 serial port, 232: 232 serial port
T (extension module)	16TF (16G TF card), 16SSD (16G SSD hard disk), GPS (with positioning)
Example	WG783-NF65-MQTT-485: Support 5G full Netcom (domestic), support general MQTT platform WG783-NF15-MQTT-485: Support 5G full Netcom (Qualcomm), support general MQTT platform WG783-LQ05-MQTT-485: Support 4G Full Netcom, support general MQTT platform WG783-MQTT-485: Ethernet Internet, support general MQTT platform

Downloads

[Product introduction] Industrial intelligent gateway - introduction

【Product Specification】WG783 Product SpecificationV1.0

【Product User Manual】Gateway Product User Manual V6.2

【API Document】Open platform format API interface V5.6

【Software Product】IOT Device Express V1.9

Wutong Bolian, help you open the road of industrial digitalization and intelligence
